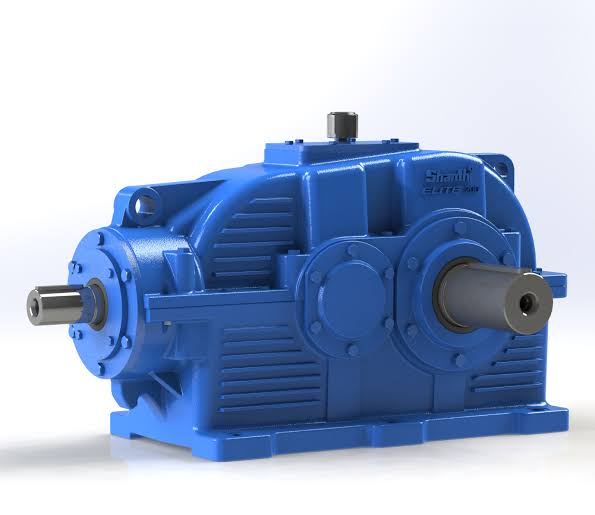

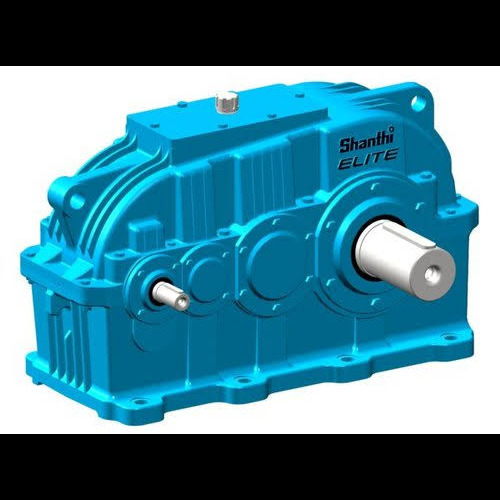

Helical Gear Box

60000.0 INR/Piece

Get a Price/Quote

Product Details:

Gear Type Bevel Gears
Usage Industrial
Material Iron
Size H1N 80 To H4N 560
Processing Type Die Casting
Height 400 Millimeter (mm)
Gear Tooth Profile Helical Gear
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Helical Gear Box Price And Quantity

Minimum Order Quantity 1 Number
Price 60000.0 INR/Piece

Helical Gear Box Product Specifications

Gear Type Bevel Gears
Length 600 Millimeter (mm)
Height 400 Millimeter (mm)
Gearing Arrangement Helical
Output Torque Up to 50,000 Nm N-m
Weight 40 Kilograms (kg)
Output Speed 2.59 To 1200 RPM
Size H1N 80 To H4N 560
Efficiency Up to 85%
Processing Type Die Casting
Input Speed 500 To 1500 RPM
Material Iron
Direction Horizontal / Vertical
Width 600 Millimeter (mm)
Product Type Helical Gear Box
Voltage 420 Volt (v)
Usage Industrial
Gear Tooth Profile Helical Gear
Color Blue

Helical Gear Box Trade Information

FOB Port Vadodara
Payment Terms Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability 100 Number Per Day
Delivery Time 2 Days
Packaging Details Standard
Main Export Market(s) North America, Australia, Western Europe, Central America, Eastern Europe, Asia, South America
Main Domestic Market All India

Product Description

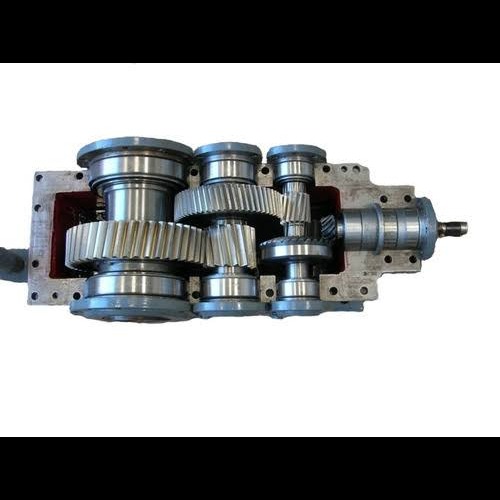

A Helical Gear Box is a power transmission unit that uses helical gears to reduce speed and increase torque. The angled teeth provide smooth, quiet, and efficient operation, making helical gearboxes ideal for continuous-duty industrial applications.

Helical Gear Box Manufacturer in Vadodara

Helical Gear Box Manufacturer in Gujarat

Helical Gear Box Manufacturer in India

Helical Gear Box Supplier in Vadodara

Helical Gear Box Supplier in Gujarat

Helical Gear Box Supplier in India

Helical Gear Box Trader in Vadodara

Helical Gear Box Trader in Gujarat

Helical Gear Box Trader in India

Technical Specifications

Parameter	Specification
Gear Type	Helical Gears
Mounting	Foot Mounted / Flange Mounted / Shaft Mounted
Gear Ratio	1.2:1 to 300:1 (Higher with multi-stage)
Power Range	0.12 kW to 200 kW
Output Torque	Up to 50,000 Nm (depending on model)
Input Speed	Up to 3,000 RPM
Output Speed	51,500 RPM
Efficiency	94%98% per stage
Housing Material	High-grade Cast Iron (CI) or Aluminium
Gear Material	Hardened & Ground Alloy Steel
Shaft Material	High Tensile Alloy Steel
Lubrication	Splash or Oil Bath Lubrication
Mounting Position	Horizontal / Vertical
Protection Class	IP55 (Higher available)
Ambient Temperature	-20C to +40C

Features

High transmission efficiency
Smooth and quiet operation
Compact and rugged construction
High load carrying capacity
Long service life
Low maintenance
Excellent heat dissipation
Reliable performance under continuous duty

Advantages

High torque output
Low vibration and noise
Energy-efficient operation
Suitable for heavy-duty industrial applications
Easy installation and maintenance
Multiple mounting options available

Applications

Conveyor Systems
Cement Plants
Steel Industries
Material Handling Equipment
Food Processing Machines
Packaging Machinery
Textile Machinery
Crushers
Mixers & Agitators
Mining Equipment
Chemical Plants
Pharmaceutical Machinery
Paper Mills
Sugar Industries

Standard Mounting Types

Foot Mounted
Flange Mounted
Solid Shaft
Hollow Shaft
Vertical Mounting
Horizontal Mounting

Typical Input & Output

Input: Electric Motor (AC/DC/Brake Motor)
Output: Solid Shaft or Hollow Shaft
Speed Reduction: Single, Double, Triple, or Multi-stage

Benefits

High efficiency (up to 98%)
Reliable performance in continuous operation
Longer bearing and gear life
Reduced operating noise
Lower operating costs
Suitable for demanding industrial environments
